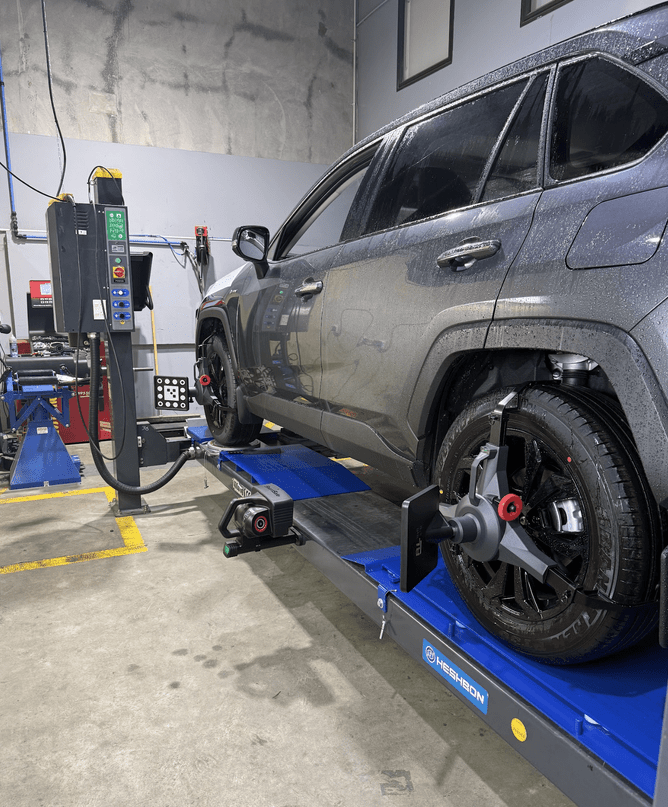

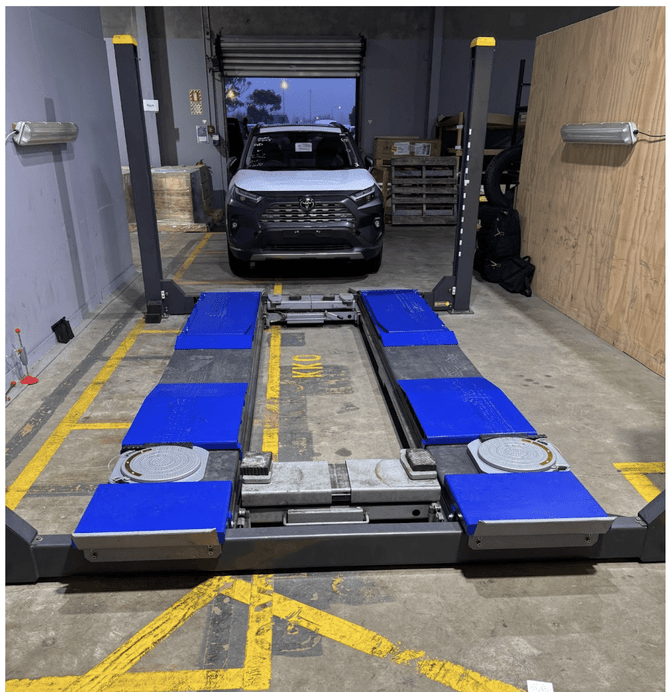

We recently installed a 4-post wheel alignment adaptor kit onto a standard 4-ton 4-post hoist to enable seamless integration with the Launch WA613 wireless wheel aligner. This retrofit kit includes rear wheel slip plates, front wheel ramps, turntables, and front locator plates to stabilise the turntables during alignment.
The Launch WA613 wireless wheel aligner is engineered for efficiency — it is quick to set up and intuitive to operate. When paired with the optional three-point tyre-mounted wheel clamps, setup time is further reduced while completely eliminating the risk of rim damage. The system includes standard four-point rim clamps, but the optional three-point clamps enhance speed and convenience.
What sets the WA613 apart is its wireless, rechargeable left and right measurement units. These magnetic-mounted units transmit alignment data directly to the tablet, operate all day on a single charge, and magnetically attach to the hoist for effortless image capture of the alignment targets.
This system offers numerous advantages over traditional alignment equipment:
Compact and Mobile: There is no bulky cabinet, freeing up valuable workshop space.
Advanced Control: The intelligent ST13 tablet delivers a crisp, user-friendly interface for alignment and can also run other Launch diagnostic software.
Fixed to the Hoist: With the aligner mounted directly to the hoist, measurements remain consistent during hoist movement and post-adjustment.
Safe and Organised: The measurement units recharge safely in a protective storage case, and the three-point clamps include wall-mount brackets for easy storage.
Portable: The complete system can be packed up and deployed for mobile alignment services on-site.
This installation exemplifies how advanced wheel alignment technology can be integrated into existing workshop infrastructure to significantly improve efficiency and accuracy.
