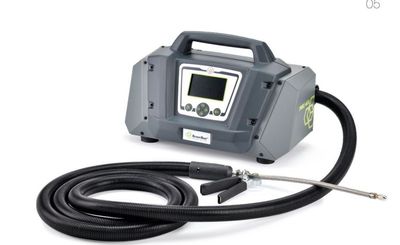

Mahle PMU 400 Particulate Matter Tester

The PMU 400 particulate counter is a metrological instrument that uses CPC (centrifugal Partition Chromatography) separation technology to measure the particle concentration in the exhausts of petrol and diesel engines.

This enables the control of emissions not only for compulsory inspections but also for maintenance and repair of vehicles.

An important feature is ease of use ensuring precise and fast measurement in the widest range of conditions.

For the best results it is recommended connecting the PMU 400 to a laptop for ease of recording and reporting test results.

Specifications:

• Particle size range -  10 to 200nm
• Concentration (metrological) -  1 to 5,000,000 #/ccm
• Concentration (diagnostics) -  0 to 30,000,000 #/ccm
• Warm up time  -  <15 minutes
• Response time -  <15 seconds
• Sample line  -  3.5m
• External power supply -  12 VDC
• Operating temperatures -  5 to 40 degrees C
• Dimensions  -  470mm wide x 300mm deep x 280mm high and 14 kg
