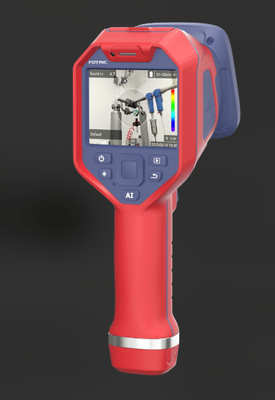

Fotric HD4 Mini Acoustic Imaging Camera Kit

See sound in real time. A step up from the TD2e, the H4 Mini uses 112 microphones to locate noise in seconds from a distance of up to 100 metres then records and reports the results.
With an increased 2 - 100 kHz frequency range the H4 Mini goes well beyond the human ear
In addition to workshop, fleet and factory leak detection, the H4 Mini providers chargeable output leak detection opportunities in any industry using compressed air, vacuum, electrical and gas powered equipment.
The H4 mini is able to grade what it finds, leak evaluation mode shows the severity of each leak on any device enabling prioritised repairs.

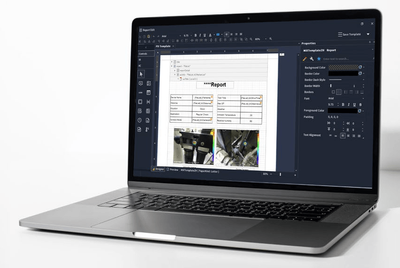

Once leaks are discovered the H4 Mini generates a word of PDF inspection report on the camera. This will provide evidential information for your quote.
Automotive uses:
Compressed Air System Leaks
Vacuum System Leaks
Gas leaks
AC system leaks
Tyre leaks
Bearing noise
Dash rattles
Electrical discharge
Vehicle cabin seal integrity (use of ultrasound transmitter inside the cabin)
KEY FEATURES
- 112 MEMS digital microphones in a high-density array
- 2–100 kHz frequency range — well beyond the limit of human hearing
- 0.3–100 m operating distance
- 66° × 52° acoustic field of view
- Leak Evaluation Mode — leak severity graded and displayed on the device
- Acoustic Image Delay (T-FFTD®) holds intermittent and momentary sounds on screen long enough to see them
- Acoustic Image Focus masks the surrounding area and locks onto the sound source you want
- Single-source, multi-source and holographic imaging modes for noisy or cluttered environments
- Holographic image capture, video recording and time-lapse capture
- On-device report generation in Word or PDF
- SPL (sound pressure level) measurement with the acoustic image
- 13 megapixel industrial digital camera
- 3.5-inch 640 × 480 IPS LCD touchscreen
- QR and barcode scanning for asset tagging and annotation
- IP54 rated body
- Two field-replaceable rechargeable batteries, 4 hours-plus continuous runtime each
- Hard case, soft bag, holster and accessories included
- One-handed operation at 770 g — usable overhead and in tight bays
