4 tonne roller brake tester for WoF inspection environments

The VTEQ 3010 is a high-quality European designed and manufactured roller brake tester for light vehicle workshops and inspection sites.

Gazetted by NZTA for WoF inspections in New Zealand, the VTEQ 3010 combines reliable VTEQ hardware with easy-to-use software for accurate, repeatable brake performance testing.

Key Features:

• Maximum axle weight: 4 tonne
• 4WD test capability as standard
• Soft start system
• Electronic brake to assist vehicle exit
• High-quality control cabinet
• PC, 27 inch monitor and remote control included
• Easy-to-use VTEQ software
• Designed and manufactured in Europe
• Gazetted by NZTA for WoF inspections in New Zealand

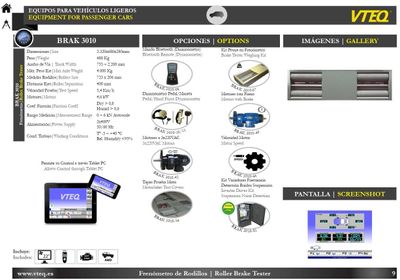

Technical specifications

• Maximum axle weight: 4 tonne
• Drive motors: 4.6 kW x 2
• Track width: 755 – 2,200 mm
• Roller size: 732 x 206 mm
• Roller separation: 400 mm
• Friction coefficient: dry > 0.8, wet > 0.6
• Measurement range: 0 – 6 kN
• Test speed: 5.4 km/h
• Power supply: three phase 400V + N + PE, 32 amp, 50/60 Hz
• Weight: 480 kg

Supplied with installation and onboarding

The VTEQ 3010 price includes delivery, installation and end-user onboarding, helping your team get set up with confidence.

AECS Equipment will also include your brake tester on their annual calibration schedule to help support ongoing compliance and reliable testing performance.
