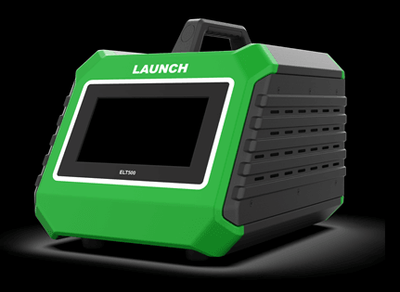

ELT500 EV Battery Pack Air Tightness Tester

The ELT500 is a high precision non-destructive testing tool using compressed air to apply pressure to the inner cavity or surface of the product to be tested. A high-sensitivity sensor detects pressure changes to determine the tightness of the product.

Features:
The 7-inch LCD touch screen and the intuitive menu simplify the operation.
High-sensitivity pressure sensing, greatly improves test accuracy and stability.
Test process progress display option.
Real-time display of pressure and process pressure curve.
Adjustable test parameters can be preset for quick set up.
Parameters such as work piece number, volume, pressure, time of each stage, and leakage limit can be preset.
Sound and light alarm will be issued when the test is abnormal or failed.


Specifications:
POWER - 20W (Max)

TEST PRESSURE RANGE - 0~30Kpa

SENSOR RESOLUTION - 1Pa

TEST ACCURACY - ±5Pa

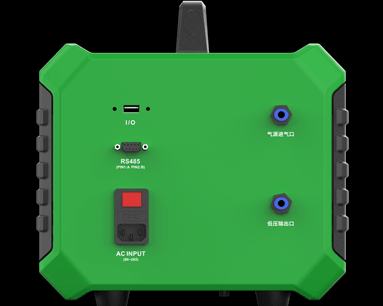

COMMUNICATION INTERFACE - RS485/USB

DATA STORAGE METHOD - Internal storage, or data upload to USB drive

POWER SUPPLY - AC 90~265V

AIR SOURCE REQUIREMENTS - 0.1~1.0 Mpa dry compressed air

INTAKE PORT/TEST PORT - Φ6mm/φ6mm

WORKING TEMPERATURE/HUMIDITY - -10~55°C/10%~90% @25°C

DIMENSIONS/WEIGHT - 280*276*360(mm)/4.5kg
